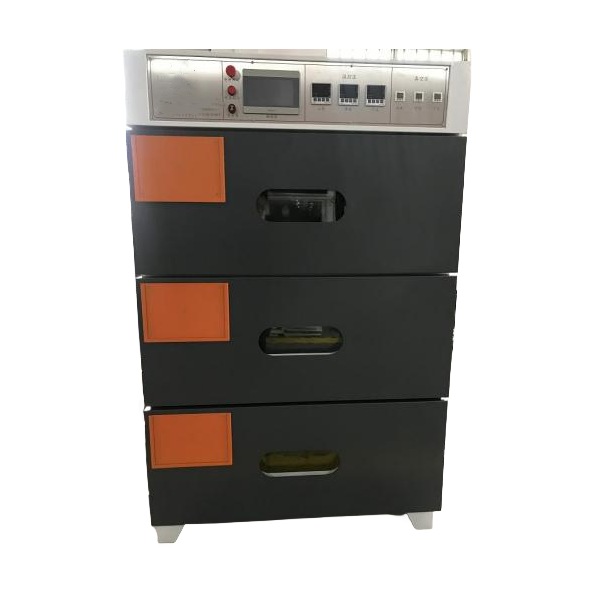

3 Layers Large Capacity Energy Saving Type ​Vacuum Drying Oven


Contact Person:Louis Yang

Email: Louis@chinabatterymachine.com

Tel:+86 13003860308
Whatsapp: +86 13003860308
Wechat:18659217588

  • Item No.:

    LITH-HKZN-PT03-B1
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 days

New Products

  • Product Details

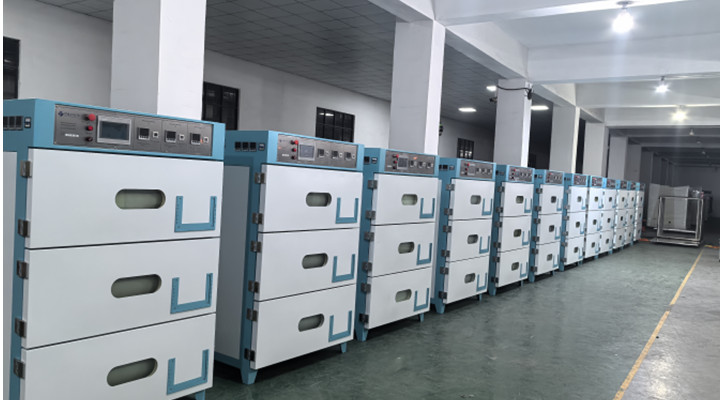

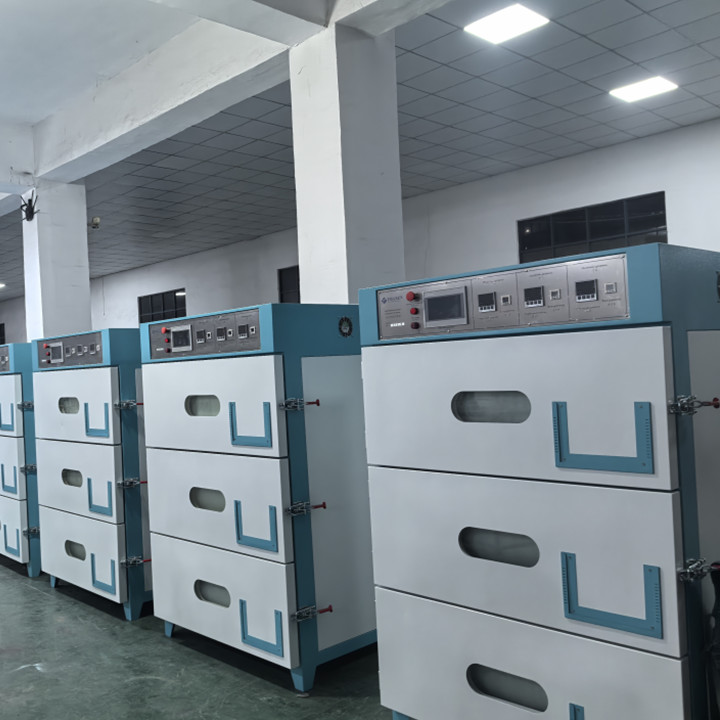

3 Layers Large Capacity Energy Saving Type Vacuum Drying Oven




1、 Basic structure

 It consists of 5 parts:

1.   Rack section;

2.   Internal cavity part;

3.   Vacuum pumping and nitrogen filling section;

4.   Electrical control part;

5.   External circulation section;


2、 Operational principle

Each machine can work continuously in a cycle; Basic process: Open the door and put the battery or electrode into the oven, then set the heating time, vacuum time, and nitrogen time. The system will automatically complete the heating and timed air exchange according to the set time parameters, completing the baking process.


3Configuration

3.1Inner cavity: Made of 3.0mm stainless steel, with reinforcing ribs made of iron square material

3.2Rack: Made of 1.5mm high-quality cold-rolled sheet, consisting of two layers of insulation, with cotton made of three layered materials: aluminum silicate, aluminum foil cotton, and sound insulation cotton

3.3Hot air system: Each layer is composed of fans, heating boxes, air ducts, air ducts, etc., which can better achieve temperature consistency

3.4Control system: composed of PLC, touch screen, pressure sensor, high vacuum baffle valve, solid-state relay, temperature controller, electromagnetic valve group, etc

3.5Hardware components: including doors, back covers, vacuum tubes, and other stamped parts, etc


4Machine characteristics

4.1. Door opening method: single door opening; Elastic double-layer glass door, three-layer pressure detection, with overvoltage protection function;

 4.2 Inner liner sealing ring: Silicone rubber O-ring made by pouring mold, resistant to high temperature and corrosion

4.3 Principle: Surrounding hot air external circulation. Double layer thermal insulation, with an external temperature not exceeding room temperature+20 degrees;

4.4 Heating structure: Adopting O-shaped external circulating air, with left side air outlet and right side air suction, achieving temperature consistency;

4.5. High fidelity pneumatic baffle valve, isolated three-layer independent control;

4.6. Touch screen display, automatic cycle and automatic control, completing the final step and returning to vacuum holding pressure; Digital safety temperature display;

4.7. Equipped with a multi position overtemperature protection temperature control device, it can effectively prevent temperature control safety issues such as temperature loss, and improve the accuracy of overtemperature protection;

4.8. The control screen adopts a touch screen for centralized operation, which is convenient to operate and reliable to control. The program controller adopts PLC control, which works stably and reliably;

4.9. The three-layer oven is individually controlled, and the total baking time, cycle time, vacuum pumping time, and drying time can be set separately. After setting the parameters, the automatic button can be pressed to enter the automatic baking program. When the time reaches the baking time, it will automatically shut down. If the temperature exceeds the safe temperature value, an alarm will be triggered and the red indicator light will light up, and heating will automatically stop. The alarm information will be displayed on the display screen;

4.10. Fill the box with dry air to any set value between -0.1Mpa and -0.02Mpa, and the inflation can be automatically stopped;

4.11. During normal operation, the fault prompt alarm and the cause of the fault can be described on the screen;

4.12. Vacuum tubes have anti-corrosion properties;

4.13. Program interlocking to prevent inter layer gas leakage.


5Technical parameters:

SN

Item

Parameter

1

Heating principle

External circulation hot air heating

2

Power

380V  50HZ  14KW

3

Gas source

Dry air: 0.1-0.2Mpa/vacuum:-0.098- -0.1Mpa/compressed air: 0.4-0.5Mpa

4

Temperature

Room temperature to 120℃

5

Vacuum degree

When drawn between -0.1-0.098Mpa, the digital display maintains a pressure of ≥ 95% at room temperature and normal pressure for 24 hours

6

Display error

Set value and stable displayed value≤±1℃

7

Thermal insulation performance

The outer wall temperature shall not exceed 45 degrees (excluding glass doors)

8

Temperature uniformity

50MM away from the wall at each point inside the cavity: ≤ ± 3.5 ℃ under normal pressure

9

String temperature property

≤20℃(Within 100 degrees of temperature rise in adjacent layers, only within 20 degrees higher than room temperature)

10

Response speed

Within 30 minutes from room temperature to 85 degrees Celsius, the surface display reaches the set value, and the unloaded core temperature stabilizes for 90-120 minutes

11

Vacuum pumping and nitrogen filling positions and interface specifications

The interface is located at the rear of the device; The vacuum connection is DN20, and the dry gas connection is a  12mm gas pipe connection

12

Inner liner size (201 material)

350 H×850 W×800 D×3

13

Outer size

2000 H×1270 W×1150 D

14

Appearance color (baked paint treatment)

Grey white orange (customer can provide color palette)


6Electrical configuration:

SN

Item

Specification

1

PLC

Huichuan

2

Touch screen

7-inch Huichuan color screen

3

Temperature controller

Digital intelligent temperature controller/microcomputer PID automatic calculation

4

Temperature mode

PID+SSR(thyristor), Shanghai Yatai

5

Over temperature protection

Shanghai Yatai Temperature Controller

6

Temperature sensor

Hualing K-type thermocouple

7

Vacuum gauge

Digital vacuum gauge/-101.0-101.0 kPa positive and negative pressure universal type, Taiwan Jingdeng



8

Vacuum valve/nitrogen valve

Vacuum baffle valve

9

Alarm

Yijia

10

Heating tube

Customized

11

Control mode

Each chamber works independently, and the heating, vacuuming, and nitrogen filling modes are PLC automatic circulation. The operation of each working section is set through the touch screen



7Installation conditions

7.1 The distance between the front of the oven and the wall shall not be less than 1500mm, and the distance between the left and right rear sides shall not be less than 500mm. Users must provide independent power distribution switches and be responsible for connecting external power sources to the equipment.

7.2 Installation area conditions (provided by the buyer):

7.2.1 Power supply: three-phase four wire AC 380 ± 38V, frequency: 50 ± 1Hz;

7.2.2 Vacuum source: pressure -0.1MPA, vacuum pipe DN20 tower joint

7.2.3 Nitrogen source: pressure 0.1~0.2MPA, nitrogen pipeline  12 gas pipe

7.3 Compressed air: 0.4~0.6MPA,  8 air pipe

7.4 Energy consumption

7.4.1 Maximum hours ≤ 12kw/hour 7.5, environmental requirements

7.5.1 Temperature -5~35 ℃, humidity ≤ 40%

7.5.2 No flammable or explosive gases, liquids, or solids in the surrounding area

7.5.3 Avoid baking flammable materials, gases, and explosives inside the box.
