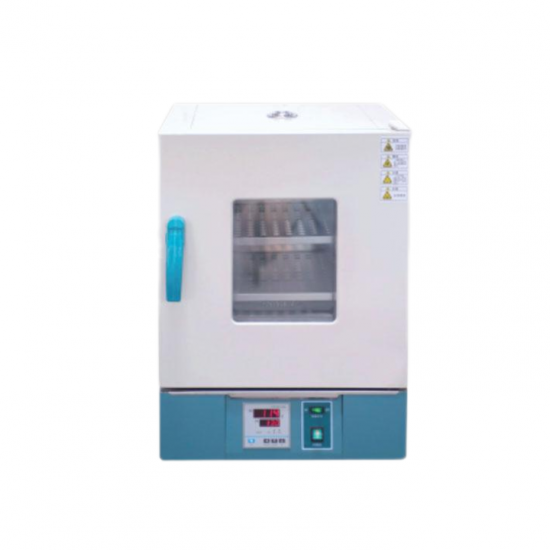

Lab Intelligent Digital Display Box Type Electric Blast Drying Oven

It is suitable for drying, baking and heat treatment of items in laboratories of industrial and mining enterprises, universities and colleges, scientific research institutes, medicine and health units, etc.



Features

1. The shell is made of high quality cold plate processing and molding, the surface is treated by spraying process.

2. The workshop is made of stainless steel or galvanized plate.

3. Intelligent digital display PID temperature control instrument, with timing, over-temperature alarm, temperature deviation repair, temperature control self-tuning and other functions.

4. A is galvanized plate inner liner, AB is stainless steel inner liner, BE is LCD stainless steel inner liner.

5. With independent fan switch, you can choose to turn on or off according to your needs, when it is on, it is electric blast drying oven, when it is off, it is electric constant temperature drying oven.

6. Using power supply: 220v 50HZ.

7. Temperature control range: +5-300℃. Temperature fluctuation ±1℃



Technical parameters

Model	Temperature control	Rated power	Power	Linner size（MM）	Overall size（MM）
101-00A	Intelligent digital display	0.6	220	260x260x260	380x390x570
101-00AB
101-0A		1		350x360x350	490x500x700
101-0AB
101-1A		1.5		400x400x450	540x540x800
101-1AB
101-2A		2		450x500x550	590x640x910
101-2AB
101-3A		3		500x600x700	640x740x1050
101-3AB
