Laboratory Bar Coating Coater Machine With Optional Wire Rod Size

Introduction

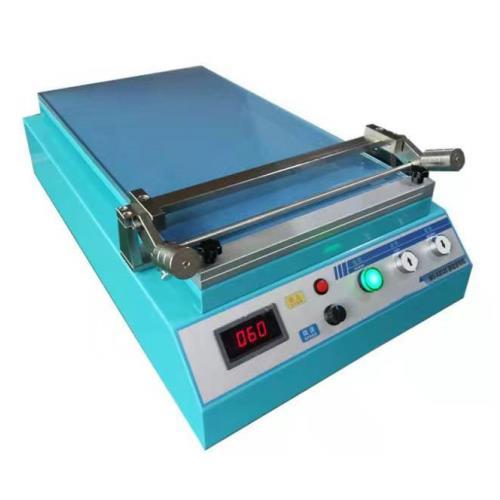

LITH-XT-200CA Film coating machine is lab Automatic Film Coater with glass bed as coating plate. It adopts OSP precision wire rod to with a larger range of coating range. This lab coating machine can be used for research on ceramic tape casting. crystal film, special nanometer film and Li-Ion battery electrode coating.
This Wire rod coating machine adopts precision extrusion type coating measuring rods coated film (the thinnest film coating thickness up to 1.5 um). It also can be used for Paper printing, film, adhesive tape production.
This model is without heating function, Heating lid is available at extra cost for drying . please select model LITH-TMH if we need hot function.

Specifications

Model	Film Coating Machine TMAX-XT-200CA
Working Voltage	110V AC or 208 - 240V AC 50/60Hz Single Phase
Power	200W
Traverse Speed	0 - 200 mm/sec variable
Max. Coating Dimensions	400300mm (LW)
Coating base size	570340mm (LW)
Platform	Glass bed for coating
Coating thickness	Coating film by precision wire bar (Thinnest coating film thickness is 5um)
Coating wire bar size	Diameter : 10mm, Length: 400mm,Effective coating width:300mm
Product Dimensions	570mm(L) 340mm(W) 100mm(H)
Net Weight	20kg
Warranty	One year limited warranty with lifetime support
Application Notes	Rolling is absolutely necessary to ensure good density and adhesion of electrode materials to the current collector substrate after coating. Please select a rolling press from here.
