Laboratory Single Side Aluminum Foil Coated with LiMn2O4 Battery Pouch Cell Cathode Materials

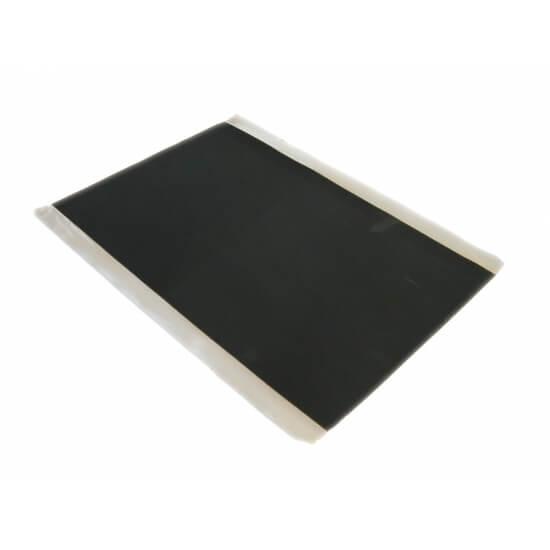

This electrode sheet is based on Aluminum foil coated by lithium-manganese oxide in single side and is used as the cathode of Li-Ion battery   5 sheets/bag

SPECIFICATIONS

Current collector (substrate): Aluminum foil ( 15 microns)

• Cathode material: lithium-manganese oxide
• Single side active material density: 166g/m²
• Active Material Weight: 6.507g
• Active Material Proportion in Powder(weight ratio): 94.20%
• Specific Capacity: 110 mAh/g
• Average Cycle Life: 500 Cycles @ 0.2C Charging/Discharging Rate

• Length: 241mm
• Width: 200mm
• Total Thickness: 100um +/- 5um
  Foil Thickness: 15um +/- 5 um
  Coating Thickness: 85 +/- 10um
• Single side coated
• Qty: 5 sheets/bag

• Warning:  Please dry in vacuum oven before using and store it inside glovebox after open package
