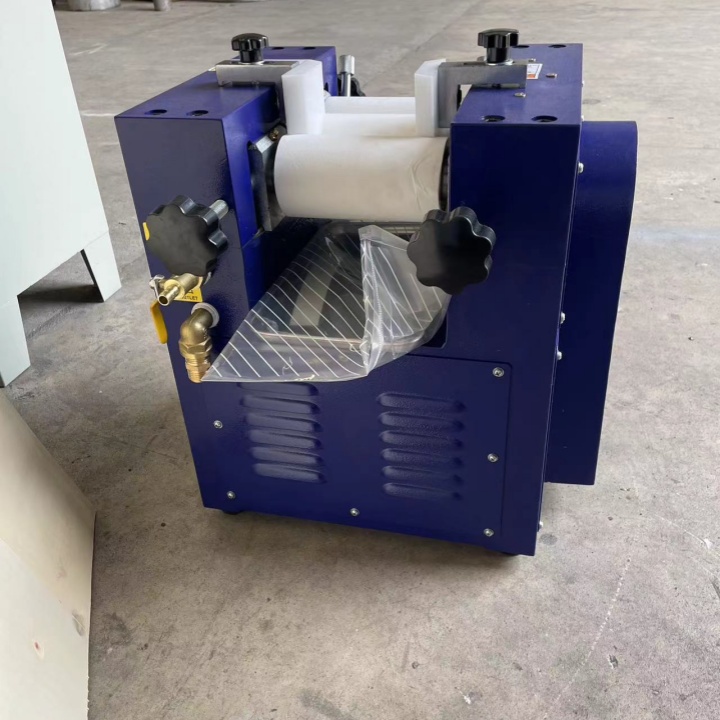

Zirconia Ceramic Roller Three-roll Grinding Machine Equipped with Hard Plastic Blade Material

S65 laboratory three roller grinding machine is mainly used for grinding and dispersing laboratory of all kinds of paint, ink, pigments, plastics and other slurry, especially high viscosity and particle size requirements of fine products.

The grinding effect is achieved by rubbing the surfaces of three horizontal rollers against each other at different speeds.

The roller of the machine is made of alloy steel, so the crystal phase is close, the strength is high, the surface has high hardness and wear resistance, and there is a cooling device to ensure continuous work.

Device name	Three-roll grinding machine (ceramic roller)
Model number	S-65
Roller diameter (mm)	65
Working length of roller(mm)	125
Material of roller	Zirconia ceramic roller
Blade material	Hard plastic
Baffle material	Polytetrafluoroethylene
Frame material	Stainless steel 304
Speed fast/medium/slow(r.p)	250/89/32
Power (kw)	0.75-220V mains power
Overall dimensions (mm)	400 * 480 * 470
Weight (KG)	Net weight 40KG
