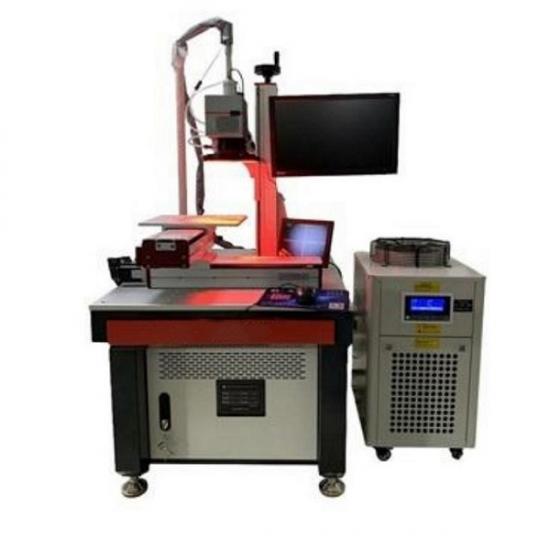

1500W Optical Fiber Laser Galvanometer Welding Machine Laser Welder

Principle Of Laser Welding:

After a series of processing, the laser emitted by the laser generator highly concentrates the energy in a very small range after focusing by the lens. If the processed material absorbs the laser better, the material in the irradiated area will rise rapidly because it absorbs the laser energy. According to different material properties(such as melting point, boiling point and temperature of chemical change), the workpiece will undergo a series of physical or chemical changes, such as melting, gasification, oxide formation, discoloration and so on.

Optical fiber series welding machine configuration:

Configuration and model	LITH-HY-C1500W	Remark
Laser system	RAYCUS –C1500W	Wuhan Ruike
Transmission mechanism	10m optical fiber	Wuhan Ruike
Welding head	Optical fiber galvanometer welding head	LITH
Control mode	IPC computer, special galvanometer welding software	LITH
Positioning method	Semiconductor red light, CCD monitoring and positioning	LITH
Kinematic mechanism	Gantry type X/Y/Z (left and right, front and rear, upper and lower) axis motor guide rail (900mm * 600mm * 300mm)	LITH
Gas protection	Synchronous argon or nitrogen protection	LITH
Refrigeration system	1P Integrated thermostat internal circulating cooling water	LITH
Cabinet	Main machine:1580*900*1600mm、 Water tank: 530*450*700mm	LITH

Specification:

Model	LITH-HY-C1500W
Maximum laser power	1500W
Output center wavelength	1070±10
Welding method	Continuous, spot welding
Laser weld	0.2-5mm
Maximum welding depth	3mm（stainless steel）
Fiber length	10m
Main machine size	0.8*0.9*0.7m
Working voltage	220V/32A
Working temperature	5-35℃
Weight	360KG

Consumables: no consumables, the service life of fiber laser is about 100000 hours.



Sample Display:
