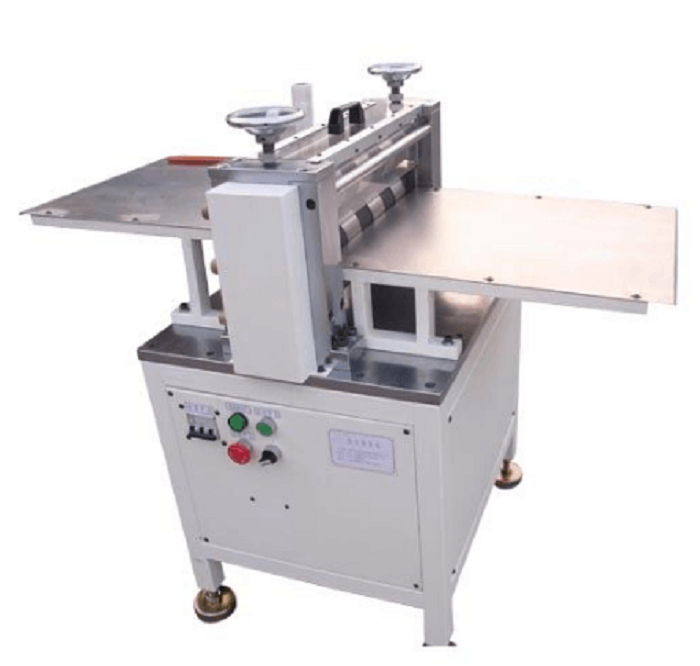

Aluminium Foil And Copper Foil Slitter Cylindrical Battery Electrode Slitting Machine

Features:

1. Battery electrode slitting machine is a semi-automatic slitting machine for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line.

2. The slitting machine can slit electrode with width up to 400mm, and with finished slitting width from 20mm to 400mm with different model cutter blade.

3. This equipment is suitable for rechargeable lithium batteries cathode and anode electrode of the longitudinal cutting, the electrode of the base material can be aluminum foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is an important equipment in plate processing.

Specification:

Model	LITH-MQ350A
Source voltage	AC 110V-220V, Customized, 50HZ
Power	800W
Warranty	One year limited warranty and lifetime support
Slitting mode	Single knife hobbing
Knife type	Upper and lower round knife
Slitting width	20-500mm
Slitting thickness	100-300um
Hob diameter	Φ80 mm
Slitting speed	10m/min, Adjustable
Dimension(L*W*H)	610*610*1100mm
Weight	200kg

Other Features:

1. Use the interval cutting machine to cut the electrode into big pieces-feeding,roll and cut into small pieces -receive.

2. The cutting blade can be set according to customer's requirement.

3. Cutting width from 20mm-500mm.

4. Normally the  machine will provide 5 set blades.The quantity of blade can be set.

5. Knife material: Tungsten alloy
