Equipment for Cylindrical Lithium-ion Battery Production Line

1.Cylindrical cell components

2.Flow chart for how cylindrical cells are assembled:

3.Production workshop:

4.LITH Cylindrical Cell Pilot Line Equipment and Process:

No.	Process	Equipment Name
1	Raw material baking	Vacuum Drying Oven with Tri-Level Shelf Heating Modules
2	Vacuum Mixing	Large Planetary Vacuum Mixer with Vacuum Pump and Water Chiller
3	Slurry viscosity Test	Digital Touch Screen Viscometer
4	Vacuum Mixing	Turnover Bucket (with Lifting Flame)
5	Magnetic De-Ironing Filtration	Magnetic De-ironing Filtration System for Battery Electrode Slurry
6	Electrode Coating	3 Rollers Battery Electrode Intermittent Coating Machine
7	Waste Gas Treatment	Solvent Processing System Waste Gas Treatment Equipment
8	Roll press	Roll to Roll Pressure Controlled Rolling Press Machine
9	Electrode Sheet Cross Cutting	Lithium Battery Electrode Sheet Cutter Machine for Battery Big Electrode Cutting after Coating Process
10	Electrode Sheet Slitting	Battery Electrode Roll Slitting Machine
11	Sticking glue of lithium ion battery electrode	Lithium ion Battery Electrode Piece Sticking Machine
12	Tab Welding	Al Tab Ni Tag Ultrasonic Welding Machine
13	Electrode Winding	Automatic Precision Winding Machine
14	Put the cell into the battery shell, and weld the negative electrode lug and the negative electrode shell with a spot welder	Precision High Frequency Inverter DC double Pulse Spot Welding Machine
15	Short circuit tesing	Short Circuit Tester
16	The battery shell is formed by rolling groove, which is convenient for sealing.	Floor-stand Automatic Grooving Machine for Batch Processing of Cylindrical battery Castings
17	Cylindrical Cell Cap Laser Welding	Laser Welding Machine
18	Filling the electrolyte into the battery	Automatic Precision Electrolyte Injection Station for Cylindrical Cell Batteries
19	Sealing the cylindrical cell cases	Automatic Cylindrical Cell Crimping Machine
20	Cell Formation and capacity testing	512 Channel Lithium Ion Battery Tester Equipment
21	Print numbers to cylindrical cells	Continuous Small Character Ink Jet Printer
22	Remove the moisture from the battery production process to ensure the quality of the battery	Dehumidification and Drying System
23	Vacuum pumping	Monoblock Rotary-vane Vacuum Pump
24	Provide compressed gas for each battery production machine	Helical Compressor

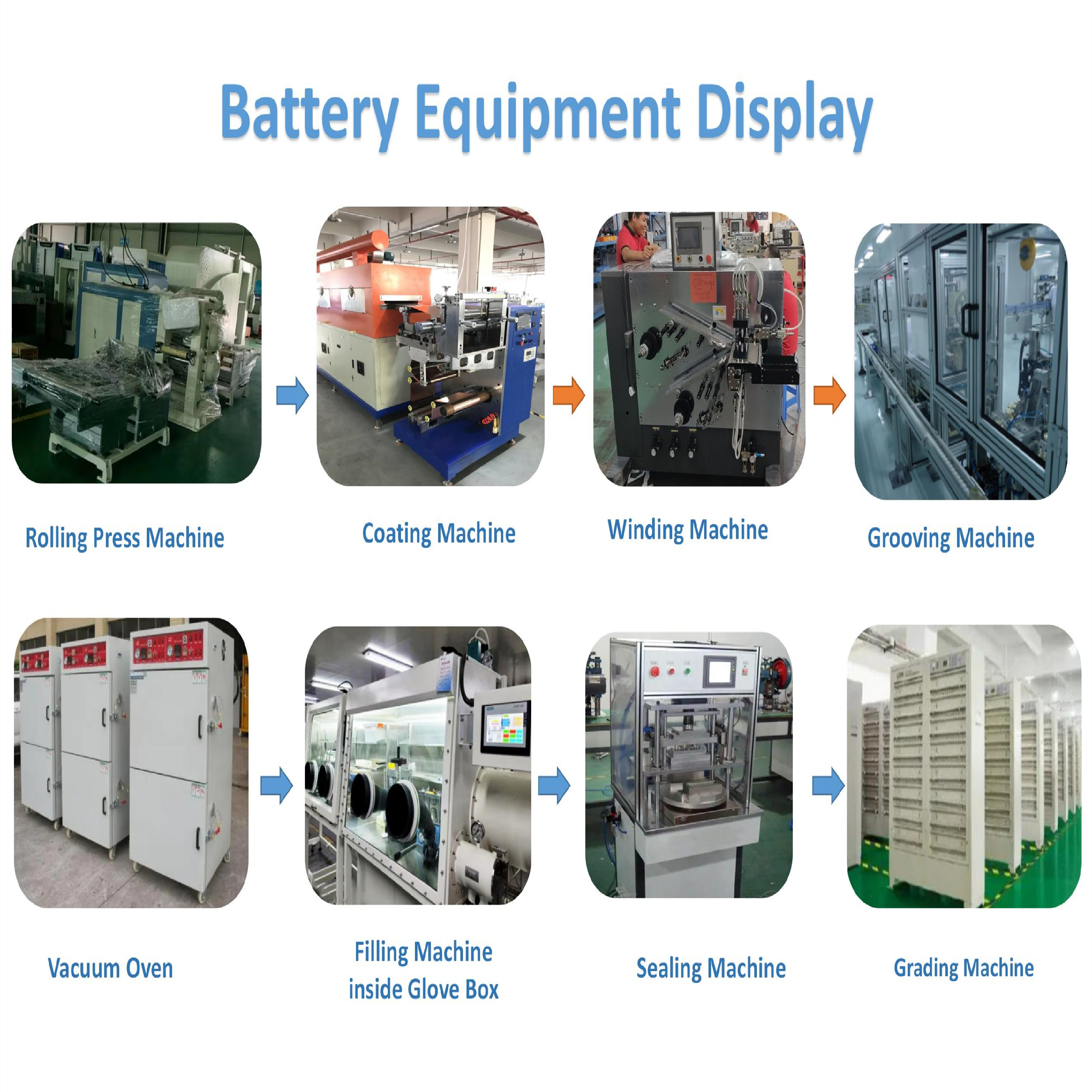

5. Machine process description:

Accurate mixing:

During mixing, a homogeneous coating paste (slurry) is produced that is applied to the electrode foils during the subsequent coating process.

Film coating:

Coating machine with various heating designed to produce films with consistent thickness.

Calender:

Roll the dried electrode to reduce the thickness and increase the density.

Slitting:

Slit the positive and negative plates according to the width requirements.

Winding:

Place the electrode piece and separator on the winder for winding, and the stacking order is as follows: (separator+ positive + separator +negative ).

Welding:

Put the cell into the battery shell, and weld the negative electrode tab and the negative electrode shell with a spot welder.

Grooving:

The battery shell is formed by rolling groove,which is convenient for sealing.

Baking before injection:

Sealing:
