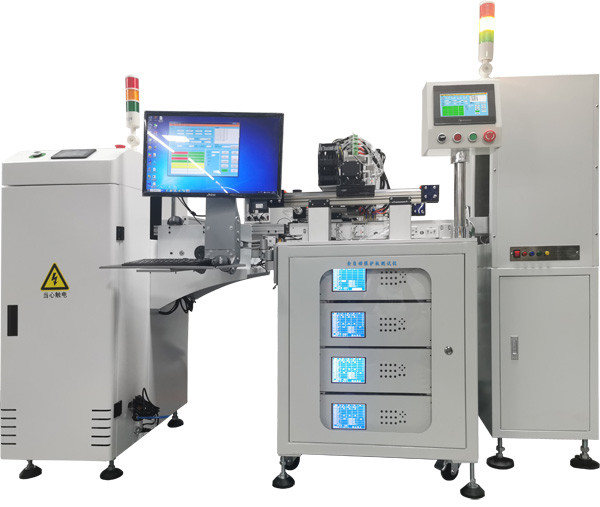

Integrated Automatic Lithium Battery Protection Board Testing Machine Cell Protective Plate BMS Tester
1. Application and Function Introduction
1.1 Application:
It is applied to the integrated automatic unmanned test process of automatic loading, automatic testing, marking after testing and automatic receiving of protection board. The equipment includes three parts: loading machine, test automation platform and receiving machine.
Board loading machine: suitable for market standard board loading machine;
Test automation platform: 1-4 PBTS (m) protection board test + automation platform;
Plate retractor: suitable for standard plate retractors on the market.
2.Function introduction:
|
Application
|
For semi-automatic test of protection board
|
|
Basic function
|
Overcharge and discharge voltage test
|
|
Overcharge recovery and discharge recovery test
|
|
Internal resistance test
|
|
Equalizing voltage and current test
|
|
Overcurrent protection test
|
|
Unique test items
|
It can support two pieces at the same time to improve the test efficiency
|
|
The equipment can be retested to avoid false measurement due to poor contact of fixture
|
|
Test pass mark + test error mark
|
|
Test and make-up statistics, monitor test output and pass rate statistics
|
|
Type of protection plate
|
Lithium iron phosphate, lithium ternary cobalt oxide, lithium manganate, etc
|
|
Parameter
|
Start waiting test bit
|
Prohibit wait for test bit
|
|
Maximum board width supported
|
80-230mm
|
80-230mm
|
|
Maximum board length supported
|
0-180mm
|
0-300mm
|
|
Maximum number of board rows supported
|
1-10
|
1-10
|
|
Maximum number of board columns supported
|
1-10
|
1-10
|
|
The special size of the puzzle needs to be customized
|
3.Parameters:
|
Test Items
|
Test Scope
|
Accuracy
|
|
Equipment channel
|
1-4
|
Optional
|
|
Number of test series
|
1-6 series
|
Optional
|
|
Reference voltage
|
LiCoO2(3.8V) LiFePO4(3.0V)
|
|
|
Overcharge protection voltage
|
0.5-5V
|
±1mV
|
|
Over discharge protection voltage
|
0.5-5V
|
±1mV
|
|
Overcharge recovery voltage (Self recovery)
|
0.5-5V
|
±1mV
|
|
Over discharge recovery voltage (Self recovery)
|
0.5-5V
|
±1mV
|
|
Overcharge protection current
|
1-40A
|
±0.1A
|
|
Over discharge protection current
|
1-20A
|
±0.1A
|
|
Equalizing opening voltage
|
0.5-5V
|
±1mV
|
|
Equalizing real-time current
|
0-200mA
|
±1mA
|
|
Overcurrent protection delay
|
0-10S
|
±1mS
|
|
Overcharge protection delay
|
0-20S
|
±1mS
|
|
Single section self power consumption
|
0-500uA
|
±1uA
|
|
Loop internal resistance
|
0-200mΩ
|
±1mΩ
|
|
Online settings
|
serial communication:RS232 serial port
|
|
Automatic unloader
|
470*470*1500mm（W*D）
|
|
Automatic test platform
|
980*680mm
|
|
Plate retractor
|
1200*1000*1500mm（W*D*H）
|
|
Floor Size
|
2200*1200mm（W*D）
|
4.Environmental requirements and technical parameters of equipment
2.1 power supply: AC voltage 220V ± 10%, frequency 50Hz ± 10%;
2.2 ambient temperature: - 10 ~ 45 ℃;
2.3 the environment is free from strong vibration, corrosive gas and flammable and explosive gas.
