1.Product model: LITH-XQM

2.Product introduction: Planetary ball mill is an indispensable device for mixing, fine grinding, sample preparation, nano material dispersion, new product development and small batch production of high-tech materials. The product is small in size, full in function, high in efficiency and low in noise. It is an ideal equipment for scientific research institutes, universities, and enterprise laboratories to obtain micro-particle research samples (each experiment can obtain four samples at the same time), equipped with vacuum ball mill The tank can grind the sample under vacuum. Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection and other departments. You can set the speed, alternating rotation time and total grinding time according to the process requirements.

3.Working principle: XQM series variable frequency planetary ball mill is equipped with four ball milling tanks on the same turntable. When the rotary table rotates, the ball mill can revolve around its own axis and make star like motion. The grinding balls in the tank collide with each other in high-speed motion, grinding and mixing samples. The product can be ground and mixed by dry and wet methods. The minimum particle size of the product can be 0.1 μ m (1.0 × 10 MM-4).

4.The main features are as follows:

1)Frequency conversion control, the ideal speed can be selected according to the test results;
2)The inverter has under voltage and over-current protection, which can provide some necessary protection for the motor;
3)The integrated system has the functions of timing shutdown, automatic timing forward and reverse, and can freely select one-way, alternate, continuous, timing and indefinite operation modes as required, so as to improve the grinding efficiency;
4)Four samples of different sizes and materials can be obtained in one experiment;

5)Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution and low loss;
6)The equipment is equipped with a safety switch, which can prevent the equipment from starting when the safety cover is opened,Avoid safety accidents;
7)Grinding tank volume: 100ml ~ 250ml * 4

8)The ball milling pot adopts planetary motion, with high efficiency and fine particle size;

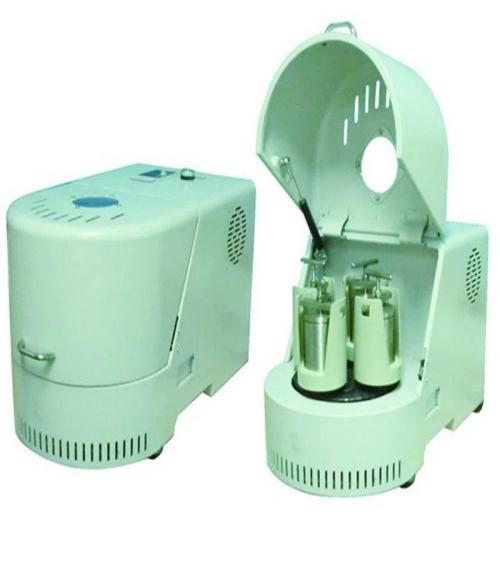

5.Product appearance
