Lab 18650 26650 21700 32650 AA AAA Cylindrical Cell Grooving Machine Beading Machine for Cylindrical Cell Research

1.Description:

It is mainly used in the sample production of laboratory battery material research and development, shell rolling groove of cylindrical battery and cylindrical capacitor, and it can also be used in small batch trial production in the factory.

2.Introduction:

TMAX-GC650 Series is a CE Certified semi-auto grooving machine. It is used for grooving various cylindrical cell cases including CR123, 18650, 26650,2100, 32650 4680 and AA, etc.

Each type of cylinder cell can only be grooved specifically by certain model of this equipment, please select the right grooving die for different cylinder cell.We provide a full ranges of Battery Pack Line.



3.Main Features:

* The width of the groove is adjustable.



*The depth of groove is adjustable.



*Groove depth time can be set.



*The groove rolling speed is stepless speed regulation.



*Adopt manual and automatic groove rolling mode.



*Can process all kinds of cylindrical battery shell groove.



*The hob adopts precision machining to ensure the accuracy, reliability and stability of groove forming.

4. Specification:

Model	Grooving Machine  LITH-GC650
Source voltage	110V-220V AC, 50/60Hz Single Phase
Power	140W
Warranty	One year limited and lifetime support
Suitable battery model	18650 / 26650 / 32650, can be customized
Advantages	1 Customized die for other cylindrical cell types is available according to request 2 Each type of cylinder cell can only be grooved specifically by certain model of this equipment. Please select the type of cylinder cellfor the corresponding  grooving die of each cylinder cell type.
Grooving depth	1.2-2.0mm adjustable
Grooving width	1.1-1.5mm
Grooving precision	±0.1mm
Knife life	>100 0000times
Air supply	0.5-0.7MPa
Dimension	600*450*350mm
Weight	68kg

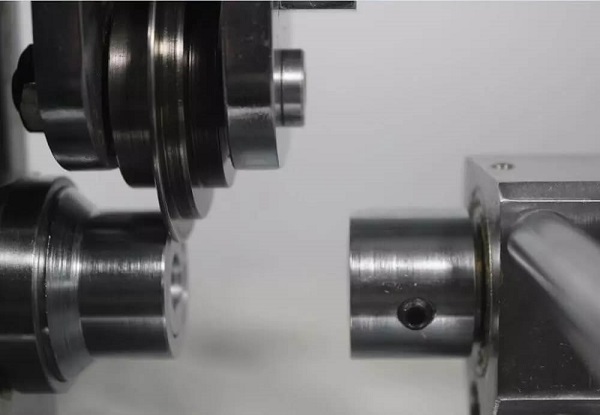

5.Product Display:
