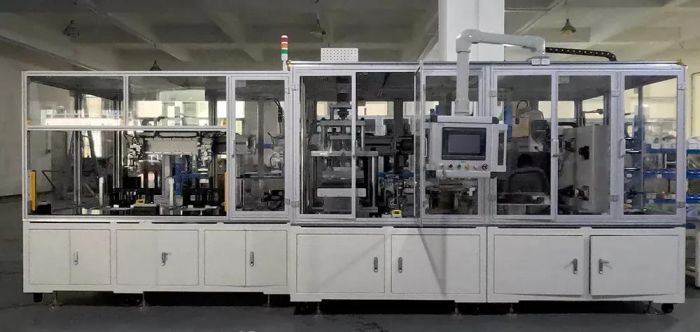

Lithium Metal Anode Making Machine for Solid State Battery Production
This solid state battery lithium metal anode electrode making machine is suitable for cutting lithium metal strips/lithium copper composite strips, production molding, separator sheet box collection and transfer for solid state battery research and manufacturing.
(1) It can realize the functions of lithium metal anode coil unwinding (release film stripping and winding), fixed length cutting, CCD positioning,tab preparation and pressing, CCD detection, separator sheet stacking and other functions.
(2) It can realize the functions of correction and unwinding of lithium copper composite tape coil (release film stripping and winding), fixed length cutting, CCD positioning, mold cutting tab forming, cutting bottom edge, CCD detection, separator sheet stacking ,blanking and other functions.
(3) The lithium metal anode is the standard coil material for lithium strip, and the lithium copper composite strip requires double-sided alignment.
(4) The equipment is placed in the drying room, and the whole machine design realizes the production of lithium metal pole sheet H (80-160) xW (60-100). The whole machine has MES data acquisition and transmission functions, equipped with industrial control computer and display.
Product dimensions and errors
|
Item
|
Designation
|
Range
|
|
Lithium foil heigh
|
H1
|
60~160mm；±0.2
|
|
Lithium foil width
|
W1
|
60~100mm；±0.2
|
|
Copper tab heigh
|
H2
|
15~25mm；±0.5
|
|
Copper tab width
|
W2
|
5~30mm；±0.2
|
|
Tab recombination depth
|
D1
|
3~10mm：±0.5
|
|
Tab height
|
H2
|
10~20mm；±0.5
|
|
Angle A
|
A
|
90°±0.1°
|
|
Angle B
|
B
|
90°±0.1°
|
Incoming materials and functional technical parameters
|
Item
|
Specification requirements
|
|
Lithium foil coil specifications
|
Thickness
|
40-120μm
|
|
Width
|
60-100mm
|
|
Outside diameter
|
300mm
|
|
Core inner diameter
|
20mm
|
|
Isolated sheet
|
Yes
|
|
Copper tape coil specifications
|
Thickness
|
6-10μm
|
|
Width
|
10-30mm
|
|
Outside diameter
|
200mm
|
|
Core inner diameter
|
3in
|
|
Slitting methode
|
Lithium
|
Alloy cutter
|
|
Copper
|
Alloy cutter
|
|
Lithium copper composite strip
|
Metal die cutting and alloy cutting knife
|
|
Number of consecutive slitting times
|
Copper
|
≥50000
|
|
Lithium
|
≥500
|
|
Lithium copper composite strip
|
Mold ≥10000, cutting knife ≥10000
|
|
Anode electrode transfer mode
|
No/micro-deformation transfer
|
|
CCD quantity
|
≥1/ Before product is loaded into magazine
|
|
CCD identification content
|
Missing Angle, tab position, right Angle
|
|
NG product exclusion function
|
exclude
|
|
Receiving form
|
Automatic blanking to isolating sheet box
|
|
Capacity
|
2~4ppm
|
Overall overview and operating environment requirements
|
Item
|
Installation requirements
|
|
Equipment storage location, load and area
|
About 5000kg, area about 6000*1600*2200mm(length * width * height)
|
|
Electrical (220/380) power
|
380V/about15KW
|
|
Gas (nitrogen, compressed air, vacuum, etc.)
|
Compressed air 0.5~0.7Mpa, 20L/min; Vacuum source: ≤-0.09MPa 120L/Min
|
|
Temperature/humidity
|
20~23±2℃/ Dew point below -45℃
|
|
Environmental protection and safety
|
Access control and electric self-locking protection
|
|
Cleanliness/dryness
|
100-300 thousand class
|
