Battery Spot Welder

/5000A/8000A Full-Automatic Double Sides Spot Welding Machine For Special-Shaped Battery Pack Metal Weldling

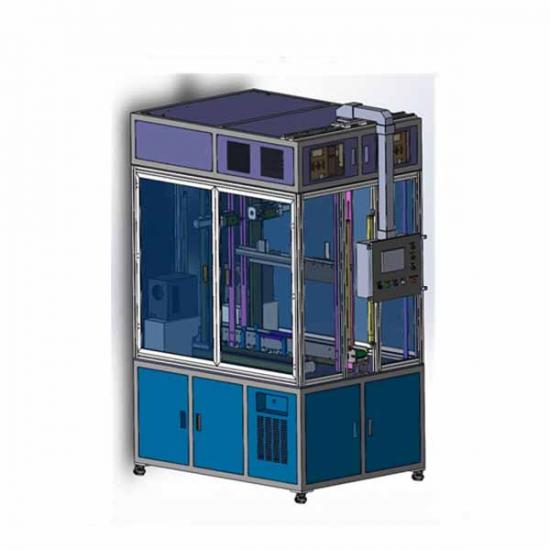

5000A/8000A Full-Automatic Double Sides Spot Welding Machine For Special-Shaped Battery Pack Metal Weldling


Contact Person:Louis Yang

Email: Louis@chinabatterymachine.com

Tel:+86 13003860308
Whatsapp: +86 13003860308
Wechat:18659217588

  • Item No.:

    LITH-ABW-70425
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 days

New Products

  • Product Details

5000A/8000A Full-Automatic Double Sides Spot Welding Machine For Special-Shaped Battery Pack Metal Weldling



Advantages:

1.The double-sided automatic spot welding machine supports breakpoint start, and can be equipped with transistor welding power supply and 5000A / 8000A inverter DC welding power supply. It can weld slotted nickel sheets below 0.3mm.

2.Double sided automatic welding, high efficiency.

3.The programming interface is easy to operate. It supports CAD array and manual programming. Any point programming and array programming can store any group of programming files.

4.Warning for welding electrode replacement.

5.The welding head adopts air-cooled or water-cooled circulating heat dissipation to effectively reduce the loss of welding needle and improve the welding effect:

6.If the spot welding machine is equipped with 8000A inverter DC and transistor welding power supply, the machine is equipped with welding current monitoring system, which now monitors the welding current and manages the false welding alarm function. When the industrial computer is used to control the welding real-time monitoring equipment, the welding parameters and abnormal welding point identification can be collected and displayed on the display screen; The welding results can be collected through communication. All welding parameters can be traced to facilitate data management. It has the functions of fire explosion, false welding, false welding, monitoring and recording.

7.The machine can be equipped with rotary welding head, which is not easy to stick the welding electrode. It is also suitable for the welding of special-shaped battery pack.

8.Electric model of machine can effectively prevent false welding and explosion welding caused by unstable air pressure.

9.Welding pressure: the pressure of two welding electrodes is adjusted independently, with the functions of counting the number of times of use of welding electrodes, alarming and clearing.

10.Machine has the functions of origin reset and breakpoint continuous welding, that is, in case of shutdown caused by abnormal problems in the process of spot welding, you can choose to return to the origin or continue welding from the breakpoint, with the function of regional repair welding.



Specification

Motor

Fully Imported Servo Motor

Travel length

6-axis double Y, 700*700mm

Welding power supply

5000A/8000A DC Welding Power Supply

Transistor welding power supply

Y-axis stroke

700mm (customizable)

Z-axis stroke

700mm (double) (customizable)

Maximum spot welding speed

0.5s/point (about 3500nos 18650 cells)

Motor transmission speed

1000mm / S

Maximum number of loaded cells

Y direction: 34; Z direction: 34

Number of file groups that can be stored

100 groups

Operating system

Embedded system man-machine interface

Transmission mode

Taiwan precision screw and guide rail

Driving mode

400W servo motor

Repeated positioning accuracy

± 0.02mm

Overall dimensions

L 1850, W: 1100, H: 2490mm

Overall power

4000W

Overall weight

650kg

Maximum bearing weight of y-axis

50kg

Input power supply

Single-phase AC 220V 51hz / three-phase 380V 50Hz

Air source

0.4-0.6mpa

Touch screen

Cantilever 10 inch screen

Current detection

external current tester

Gratings

Front and rear grating protection

Feeding mode

Online pipeline transmission (forward and backward & forward and backward)

Ejection system

Support the return of emergency braking fixture

Handwheel positioning

With handwheel positioning

Upper computer system

Optional

MES system

Optional

Code scanning function

Optional



Spot Welding Machine

Spot Welding Machine

Spot Welding Machine

18650 Battery Pack Machine
