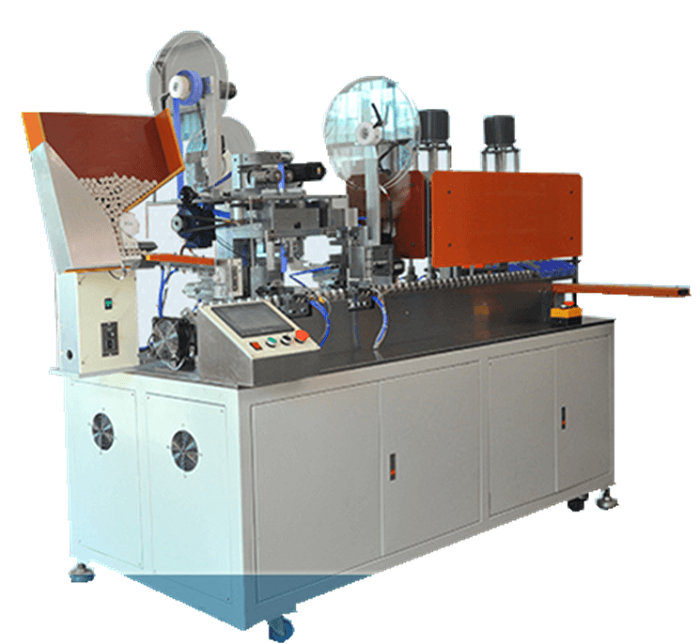

Model

Lith-Shrinking

Specification

 AA,AAA,18650

Film speed

 50~70PCS/MIN

Film precision

 ±0.1MM

Power supply

380V/220V

Air pressure

0.5~0.7Mpa

Power

9KW

Weight

800KG

Machine size

2100(L)*950(W)*1600(H)

Casing requirements

The width of the coil is 29.7±0.2mm, and the thickness of the single layer is 0.08±0.01mm.

Insulation sheet coil size

width between 20 ± 0.1mm (no material break and tape interface in the middle of the coil)

Insulation sheet die size

Outer diameter 17.4 ± 0.1 mm; inner diameter 10.5 ± 0.1 mm; inner and outer diameter concentricity ± 0.10 mm

Heat shrinkable bottom edge size

2.5mm ± 0.3mm (size error is related to casing material and baking conditions)
