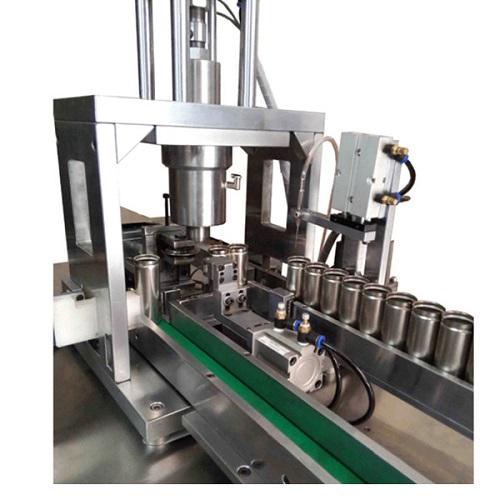

Automatic Roll Grooving Machine For Cylindrical Cell Production Plant

Introduction

This equipment can be used in the rolling groove process of rechargeable NiMH, NiCd and cylindrical lithium battery. Through PLC, intermediate relay and time relay, the grooving machine controls the coordinated action of each cylinder, the motor drives the machine body to run at high speed, and the cylindrical steel shell with electric core is uniformly and automatically grooved. We provide a full ranges of Li ion cell making Machine.

Specifications

Applicable steel shell model	18650/21700/26650 / 32650 /AA/AAA are available upon request
Rated voltage	380V，50Hz
Rated power	0.75KW
Working air pressure	0.5-0.6MPa
Control	User-friendly HMI with PLC touch screen control ensures easy program setup
Grooving Accuracy	+/- 0.1 mm
Grooving Blade Life Span	>1 million times
Grooving Force	6kgf/cm^2
Weight	175Kg
Height of material in and out and ground	About 900mm
External size	L1100*W700*H1250mm
Thickness error of hob	±0.01mm
Knife edge finish	＞0.4
Accuracy error of groove rolling die head	±0.01mm
Groove depth	±0.02mm
Concentricity of groove head	±0.01mm
Concentricity of groove head and tail top	±0.02mm

Process parameters

Size location name	Tolerance（mm）
Groove concentricity	±0.03mm
Inner diameter error of groove	±0.03mm
Groove height error	±0.03mm
Height error of groove edge	±0.03mm
There is no expansion or ellipse in the steel shell after the groove rolling	≤0.08
Coating scratch, falling off and other phenomena	Without
