Automatic Single Face Continuous Lithium Ion Battery Slurry Coating Machine

Lith-SY300J lithium battery coating machine  is a single face continuous coating machine mainly used for Slurry drying process of lithium battery electrode coating. The battery coating machine adopts continuous coating mode, is mainly used for lithium battery pilot scale production line.

Our company also manufactures various types of Li ion battery equipment. We welcome your contacts from any place of world.



SPECIFICATION

Model	Lithium ion Battery Coating Machine TMAX-SY300J
Source voltage	AC 220V/110V, 50HZ/60HZ
Power	28000W
Warranty	One Year limited warranty with lifetime support
Max electrode width	300-400mm
Configuration	Put volume (with tension adjustment), coating, drying box 6m, main drive,  winding (with tension, rectifying);
Winding rectifying control precision	≤± 0.2mm
Baking oven	Stainless steel, 2M/section,  Dry temperature : RT-150℃, adjustable, With accuracy ±3℃
Coating speed	0-5m/min, adjustable
Coating accuracy	≤±0.003mm
Control pressure	0-25N, adjustable
Air compression	0.5-0.7MPa
Coating mode	Single face continuous coating
Application foil	Aluminum foil, Copper foil
Advantage	1 This machine is single surface continuous coating machine,  2 Drying oven is heated hot air circulation structure 3 Equipped with tension control, winding rectifying automatic control 4 All parts contacted with electrode with chrome plated or stainless steel corrosion resistance

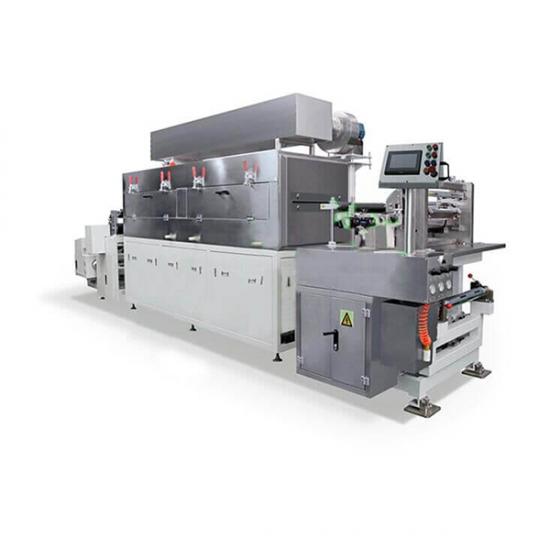

Product Image
