Cylindrical Battery Insulation Paper Sticking Machine Barley Paper Ring Labeling Machine for Lithium 18650 21700 26650 32700 Battery Pack Assembly Line

Feature:

Paste insulation paper on the positive pole to prevent the short circuit. It can use a big roll of  barley paper or PVC to automatically paste cylindrical cells.

1. Stickers pasted stable, consistent, and long lasting.

2. Automatic failure alarm.

3. Easy to program, adjust, and opertate for new hands.

4. High Efficiency, fully automatic, saving labor cost.

Specification:

Input gas source	0.4-0.8Mpa
Function Style:	stepper drive with pneumatic
Input voltage:	AC220V
Sticker Matrials:	Barley paper or PVC
Sticker Matrials Size:	Barley paper Maxium 350mm;Scroll Internal Diameter 72-75MM
Adaptable Battery Cell	18650 battery Plus-n-Minus
Power:	Electric power or pneumatic
Control Instrument:	7.5feet contact screen,PLC programming machine and step motor
Electrodes to the body distance:	100 mm (Scalable adjustable)
Producivity:	4000pcs/h; singal 4pcs
External dimensions	1.3M*1M*1.3M

Equipment Configuration:

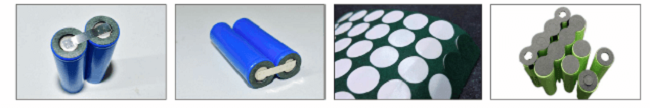

Sample Display:
