Prismatic Cell Production Plant

 /High-Speed Intermittent Coating and Die Cutting Machine For Prismatic Cells Manufacturing
Die Cutting Machine

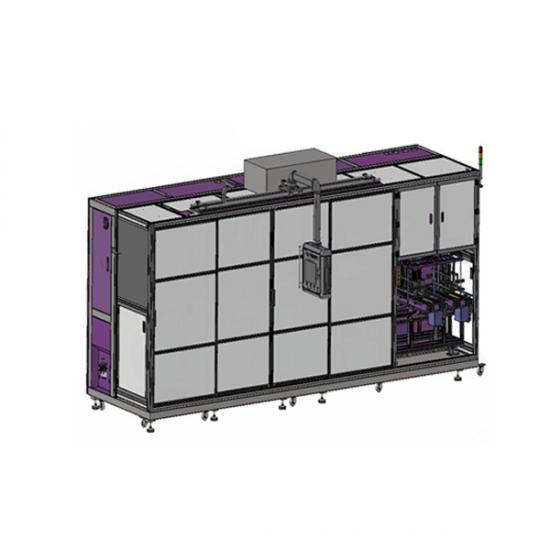

High-Speed Intermittent Coating and Die Cutting Machine For Prismatic Cells Manufacturing

Contact Person：Louis Yang

Email: Louis@chinabatterymachine.com

Tel：+86 13003860308
Whatsapp: +86 13003860308
Wechat：18659217588

  • Item No.:

    LITH-ZTH-02

  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC

  • Shipping port:

    Xiamen Port

  • Lead Time:

    5 days

Product categories

New Products

  • Product Details

 High-Speed Intermittent Coating and Die Cutting Machine For Prismatic Cells Manufacturing


Features

1.Dual Unwinding Mechanism with Quick Roll Change, One for Operation and One for Backup.
2.Three Sets of Alignment Systems: Unwinding Alignment, In-Process Alignment, and Die Alignment, Ensuring Extreme Precision in Product Formation.
3.Tungsten Steel Blade Coordinate Grinder for Precise Machining, Hexagonal Pillar Guide from Japan for Extended Tooling Lifespan.
4.Dual-Sided Margin Detection, Servo Motor Automatically Adjusts Feed Length, Eliminating Coating Misalignment Error and Ensuring Precise Dimension of Product Tabs.
5.High-Speed Bidirectional Material Receiving with Dual-Motion Mechanical Arms.
6.Non-Contact Dust and Iron Removal, Eliminating Dust on Both Sides of Product Sheets.
7.Top-mounted FFU Fan for Air Supply, Industrial Dust Extraction System with Negative Pressure at Multiple Workstations such as Die Cutting and Material Receiving, Promoting Internal Air Circulation and Removing Airborne Particles.

 Specification

Project

Parameter

Production efficiency

>180PPM

Burr size

Vas12um ; Vbs12um

Deviation correction accuracy

≤±0.1mm

Slice forming accuracy

±0.2mm

Mold Life

1. After each mold repair, it can be used no less than 1.5 million times;

2. The number of times the mold can be repaired ≥ 10 times;

Material box receiving accuracy

±0.5mm

Qualification rate

≥ 99.8% (defects caused solely by the machine)

Crop growth rate

≥ 98% (faults caused solely by the machine)

Overall dimensions

W1750mm x L7000mm x H2350mm

Weight/bearing capacity

About 3000kg; >650Kg/M-2

Power

AC380V three-phase; Voltage fluctuation ± 10%; Power: 30KW; Frequency: 50Hz

Compressed air

0.5-0.7Mpa (5-7kgf/cm2), dosage 400L/min



Project

Parameter

Punching method

Metal mold punching

Material system

Continuous coating of electrode sheet coil material after slitting, with one side outlet lug

Roll diameter

≤ 600mm

Inner diameter of drum

3"/6"

Pole winding error

士3mm

Snake shaped bending error of polar plate

±1mm/m

Height difference of polar wave edge

<2mm

Pole width W

60~200mm

Pole length L

80~300mm

Pole ear length H

10~30mm

Pole ear edge distance Q

5-20mm

Pole ear width P

10~50mm

Pole ear belt material X

0~2mm

Round RB

2~5mm

Round corners RA

Inner rounded corner

Outer rounded corner


Production Assembly Plant
