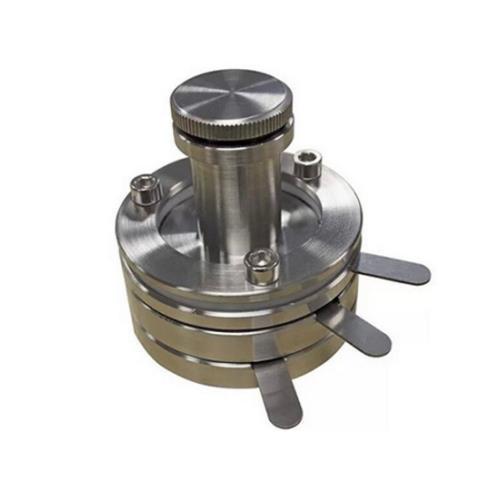

Lab Stainless Steel Three-Electrode Split Test Cell For Coin Cell Testing


Introduction

1. It is designed test various electrodes easily and quickly by providing the user a structure to simulate assembled

coin cells without the need to crimp actual coin cell cases.

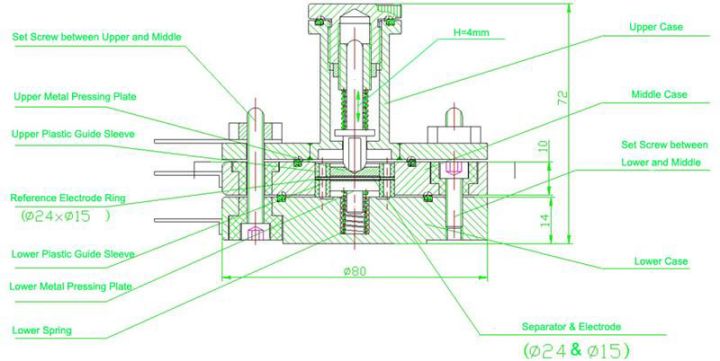

2.Two sides of test cell connect to both electrode (the anode and cathode), with the middle being connected to the

 reference electrode which can used for monitoring voltage variations of the two electrodes.

3.This test cell can accept 15 mm diameter electrodes and 24 mm separators.


Specification

Model

Three Electrode Split Test Cell EQ-3ESTC

Features

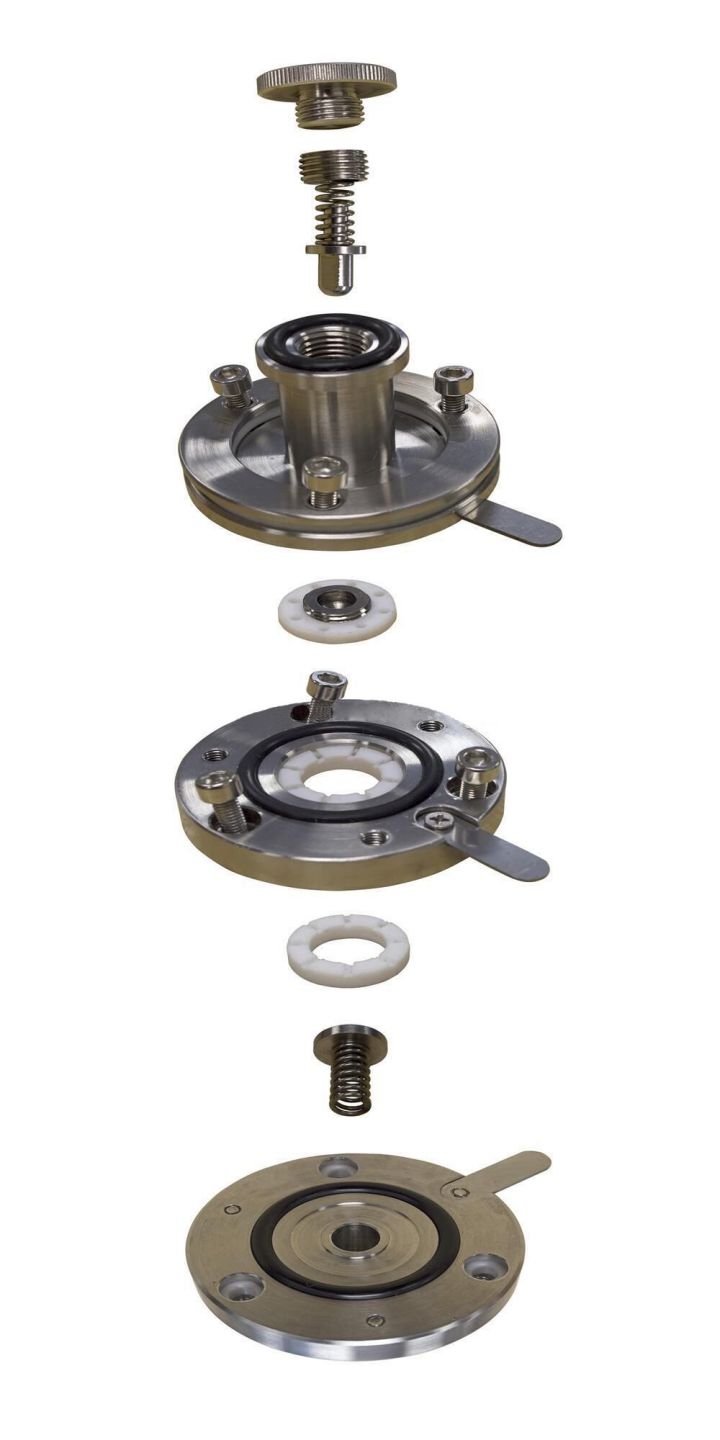

Silicon O-ring in between the three plates to ensure a good sealing up to a temperature of 300 °C

Adjustable spring tension on top to accept various electrode thicknesses

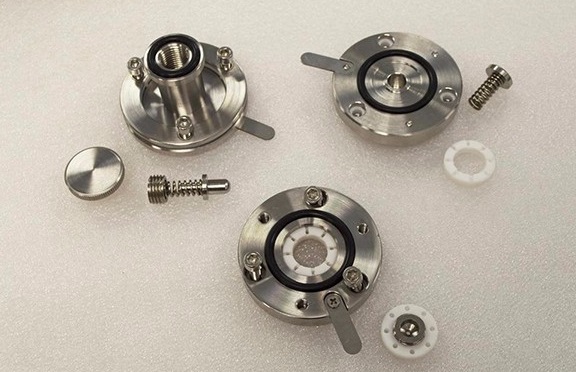

Easy to separate after testing

Small enough to be put into and taken out from a glove box

Spec

Electrode diameter :Φ24mm

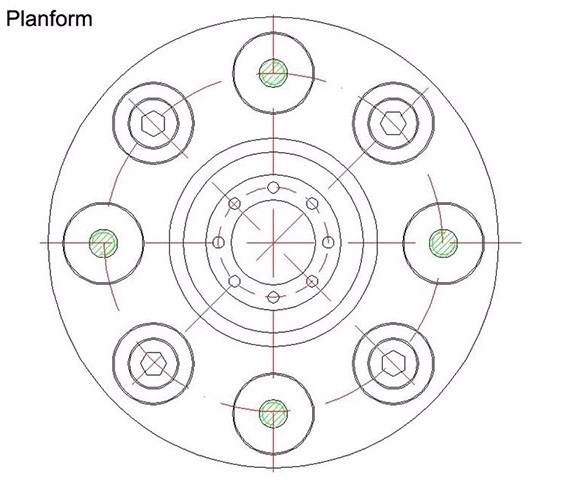

Dimension:Φ80mm*80mm

Optional

Accessories

Various Sizes Of Discrete Battery Research Suite Can Be Customized
