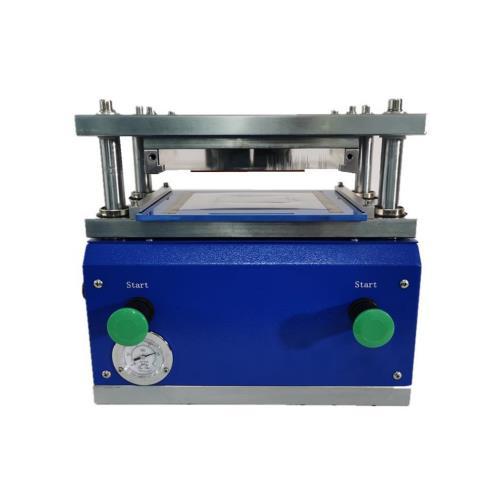

Die Set Dimensions



Two standard electrodes (Cathode & Anode) cutting dies are included for immediate use.

Cathode Die: 56mm (L) x 43mm (W). With 10mm (L) x 10mm (W) protrude current collector.

Anode Die: 58mm (L) x 45mm (W). With 10mm (L) x 10mm (W) protrude current collector

The max. applicable cutting size is 85mm L x 65mm W

Plate Pad

Use the plate pad to hold the electrode and minimize permanent markings on the base

Cutting Depth

 Max. 0.5mm (tested with aluminum laminated film)

Cutting Accuracy

±0.1mm

Cutting Pressure Force

Max. 1T (recommended pressure force for cutting battery electrodes is 0.5T)

Gas Pressure

0.5~0.8Mpa (0.7Mpa is recommended)

For the use of inside the glove box, please use compressed inert gas such as Ar.

For the use of outside the glove box, you may use the air compressor, 60 psi recommended.

Air compressor is not included, if you need, please add an additional order

Feeding

Manually

Stroke Length

12mm

Cutting Die Life Span

~30000 strokes

Compliance

CE Certified

Warranty

One year limited warranty with lifetime support

Product Dimensions

380mm(L) x 260mm(W) x 250mm(H)

Net Weight

 35kg
