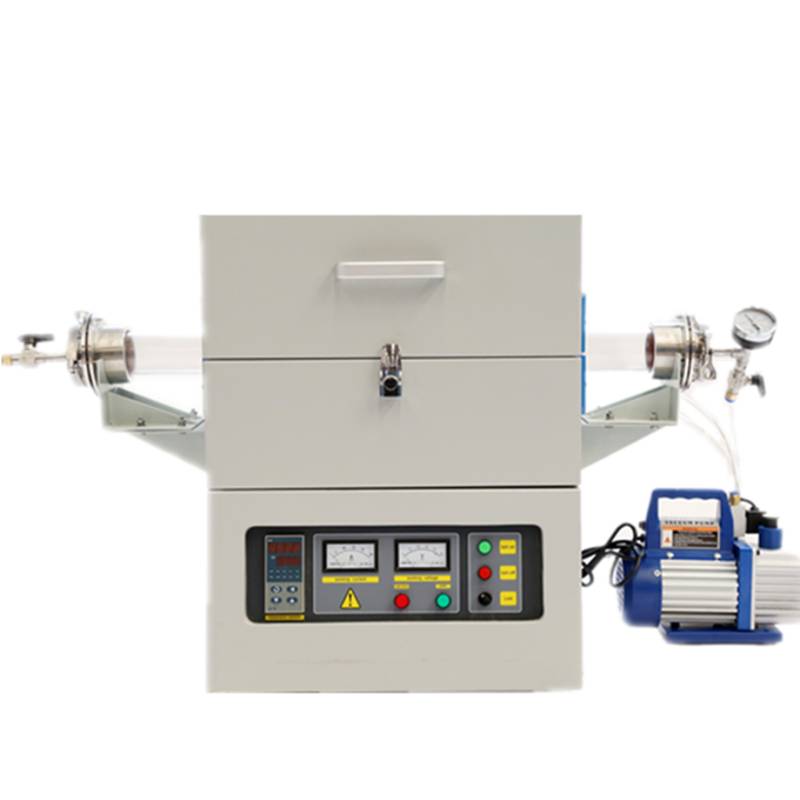

LITH-1200Cfurnace split tube furnaces feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high quality grade 1500 alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
All our furnaces are CE compliant.
Features
1 Compact, portable and lightweight design.
2 Split furnace chamber for fast and easy tube access.
3 Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
4 Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
5 Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
6 Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
7 Built-in computer interface.
8 Long life type K thermocouple.
Safety
1 Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
2 Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
General specifications
|
Electrical requirements
|
110-240VAC, 50/60 Hz, single phase
|
|
Tube material
|
Quartz
|
|
Maximum working temperature
|
1200°C
|
|
Maximum constant working temperature
|
1100°C
|
|
Constant working temperature under vacuum
|
1000°C
|
|
Minimum working temperature
|
Ambient
|
|
Rated vacuum pressure
|
0.001 Pa / 0.0075 millitorr / 0.00001 mbar
|
|
Rated positive pressure
|
0.02 MPa / 150 torr / 3 psi
|
|
Heating element type
|
Kanthal (Sweden) resistance coil wire
|
|
Thermocouple type
|
K
|
|
Refractory lining
|
Mitsubishi (Japan) high quality 1500 grade fiber alumina
|
|
Temperature controller
|
Shimaden (Japan) fp93 (made in Japan) with 4 programs and
40 segments (ie. 4 x 10 segments or 2 x 20 segments).
|
|
Maximum heating & cooling rate
|
< 30°C / min
|
|
Heating zone length
|
16 inches
|
|
Constant temperature zone length
|
10 inches
|
|
Temperature controller precision
|
+/- 1°C
|
|
Vacuum sealing flange kit
|
Stainless steel vacuum sealing flanges with one vacuum gauge,
two valves and four thermal ceramic blocks.
|
|
Gas inlet/outlet
|
1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)
|
|
CE compliance
|
Yes
|
Size comparison
|
Tube size (OD x length)
|
60mm x 1m
|
80mm x 1m
|
100mm x 1m
|
120mm x 1m
|
150mm x 1m
|
200mm x 1m
|
250mm x 1m
|
|
Maximum output
|
2.5 kW
|
3.5 kW
|
3.5 kW
|
4 kW
|
5 kW
|
6 kW
|
8 kW
|
|
Furnace dimensions (LxWxH)
|
24x15x20"
|
24x17x23"
|
24x17x23"
|
24x17x23"
|
24x18x24"
|
26x21x28"
|
26x21x28"
|
|
Shipping dimensions (LxWxH)
|
46x21x36"
|
46x21x36"
|
46x21x36"
|
46x21x36"
|
46x22x37"
|
50x28x40"
|
50x28x40"
|
|
Shipping weight (Lb)
|
260
|
300
|
340
|
400
|
450
|
500
|
650
|
