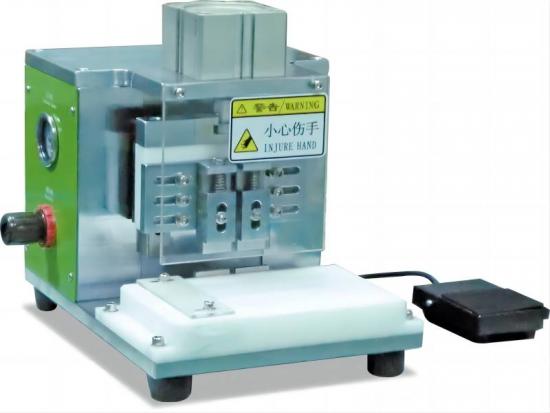

Lab Double Tabs Cutter And Shaping Machine For Lithium Battery Making

Introduction

It is mainly suitable for the flat pressing and shaping after cutting the tabs of laminated cells, fixed-length cutting and trimming of the electrode tabs of the batteries, and the double cutters are mutually insulated.

Main features

*Shangyin linear slide rail group is used for guiding, and the guiding accuracy is extremely high to ensure zero clearance between the upper and lower cutters and long service life, the upper and lower die are flat;

*Simple operation, high efficiency, stable temperature and good consistency.

*Using fixtures to assist the feeding, the cylinder drives the mold to achieve shaping.

*Set a product positioning tray to facilitate the positioning and placement of batteries;

*Beautiful, reliable, convenient and fast;

*The speed of the upper and lower platens and the shaping time can be adjusted and set;

*The upper and lower cutters are made of high-speed steel, with sharp blades;

*Double cutters are insulated from each other;

*The cylinder controls the cutter to trim the battery pole piece and tab, which is easy to be automated;

*Set the product positioning tray to facilitate the positioning and placement of the batteries.

*Beautiful, reliable, convenient and fast;

Technical parameter
