Laboratory Solid Sample Preparation Small Jaw Crusher

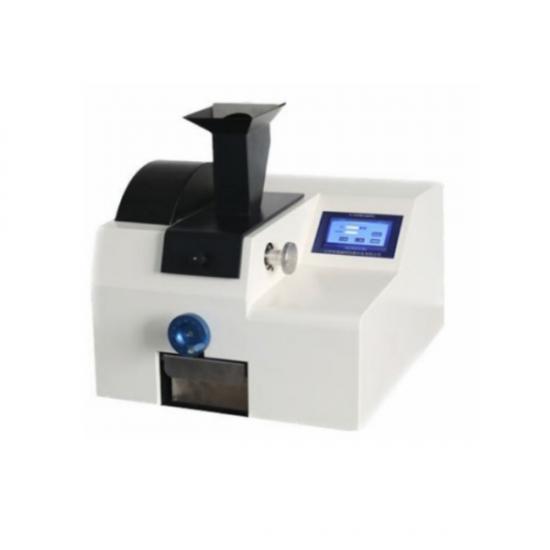

JT-E200 Small Jaw Crusher is a professional instrument for laboratory solid sample preparation. It has the characteristics of low noise, fast crushing speed, and fast sample size adjustment device. Rapid coarse crushing and pre-grinding treatment of brittle, hard, medium-hard, hard-ductile materials, such as ore, core, rock, slag, soil, ceramics, brittle material products, dried shells, dried sea cucumbers and other samples. The machine can adjust the crushing gap of the jaw plate through zero point correction to achieve the Z-optimized crushing effect.

Application

Geological minerals: rock, granite, basalt, silicate, etc.

Glass industry: glass, raw materials, etc.

Ceramic industry: sintered ceramics, electric ceramics, clay, etc.

Construction industry: slag, stone, cement, etc.

Environmental industry: soil, solid waste, etc.

Marine life: dried shells, dried sea cucumbers, etc.

Working principle

The prepared sample enters between the two jaws, and the jaws crush the sample. Under the action of gravity, the crushed sample falls into the collection box along the wedge-shaped cavity. The sample size depends on the adjusted two jaws. The gap between the plates, the adjustable jaw plate gap ensures the best crushing effect of the sample.

Technical Features

Zero point correction to compensate for wear and ensure the accuracy of sample fineness

A variety of crushing jaws of different materials can be selected

Desktop design, saving experimental space

The instrument has an anti-splash design to ensure the safety of operators

The feeding hopper can be turned upside down, and the crushing cavity is easy to clean

Jaw plate can be reversible

Technical parameter

Feeding particle size: ≤45mm

Zero-Calibration: Yes

Discharge particle size: ≤0.5mm

Speed: adjustable from 100-1000rpm

Funnel: can be turned over

Sample size adjustment range: 0-12mm (adjustable)

Motor power: 1.1kw

Power: 220V 50Hz

Grinding kit material: high manganese steel, stainless steel, zirconia, tungsten carbide, industrial plastics

Net weight: 70kg
